Global 911

UX/UI/Motion design, 2017



Introduction

Global 911 is mobile on-demand product which helps travelers during emergencies while they are abroad. It can provide your exact location, no matter where you are, who you are, or what language you speak.

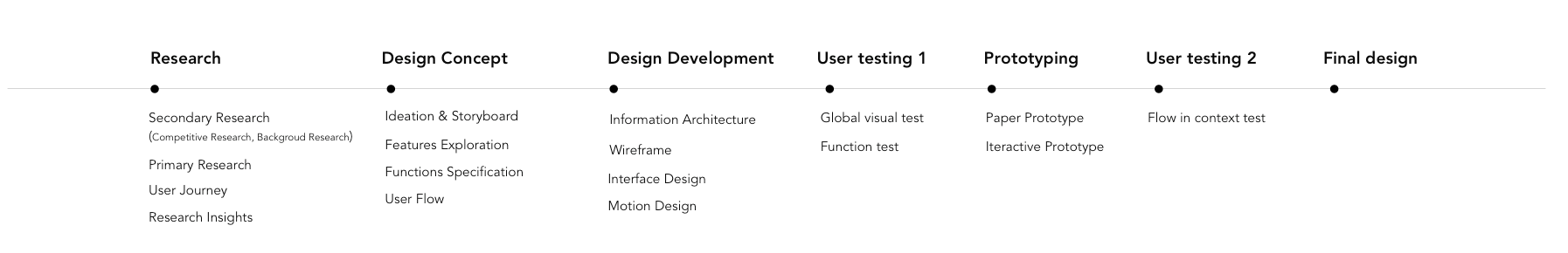

Role Company Toolkits Duration

Product Designer Louder Communications Sketch, Zeplin, Framer.js, three Months

HTML/CSS/JS,After Effect


Screen Shot 2018-10-05 at 3.51.41 PM.png



CHALLENGE

Create an digital service that helps travelers during emergencies while they are abroad, no matter where they are or what language they speak.

OUTCOME

A digital product which can reach out to the dispatcher in one-click and help the user by the chatbot system without location unfamiliar and language barriers.






Initial the design problem

Image you are traveling in another country, research the best places to visit and the best places to eat. But almost no one researches what to do if you get in an accident or get robbed...

Screen Shot 2018-10-04 at 4.48.31 PM.png



01. Research

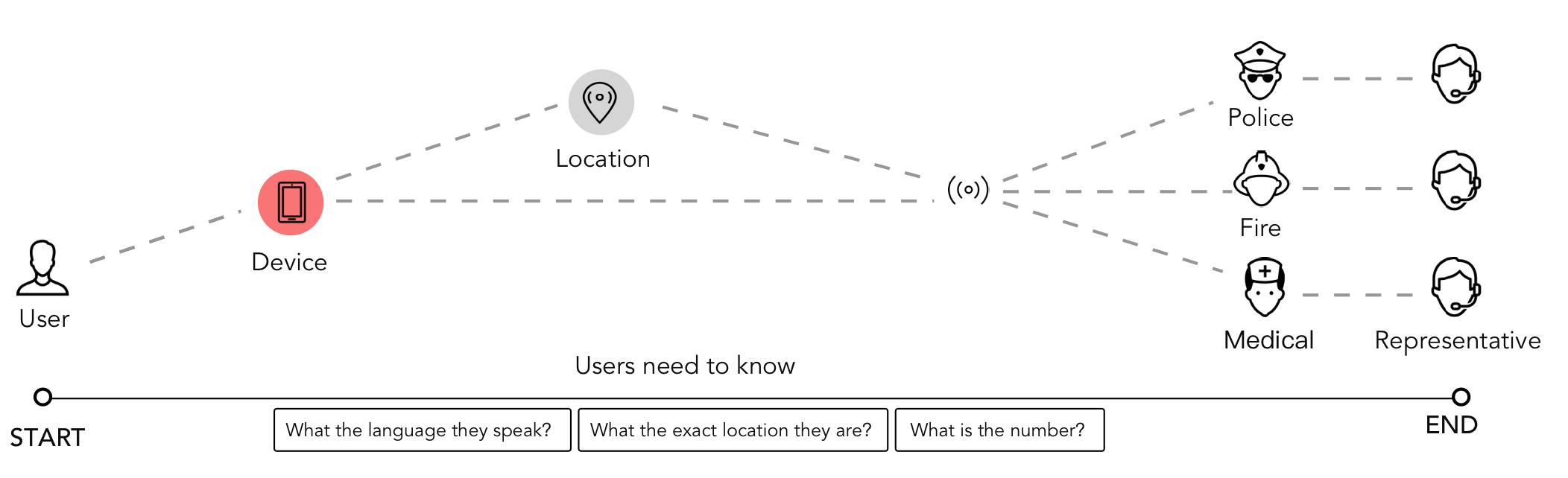

1.Stakeholder Map

I make the stakeholder map as the beginning of the research and try to be clear where to start.

  • Get the knowledge of how emergency dispatcher works in different countries.

  • Capture the pain point of the experience when people reach out to the emergency dispatcher.

  • Understand how people describe their locations especially when they are in other countries.

  • Picture how people react in the context of emergency.

Screen Shot 2018-10-07 at 7.15.29 PM.png

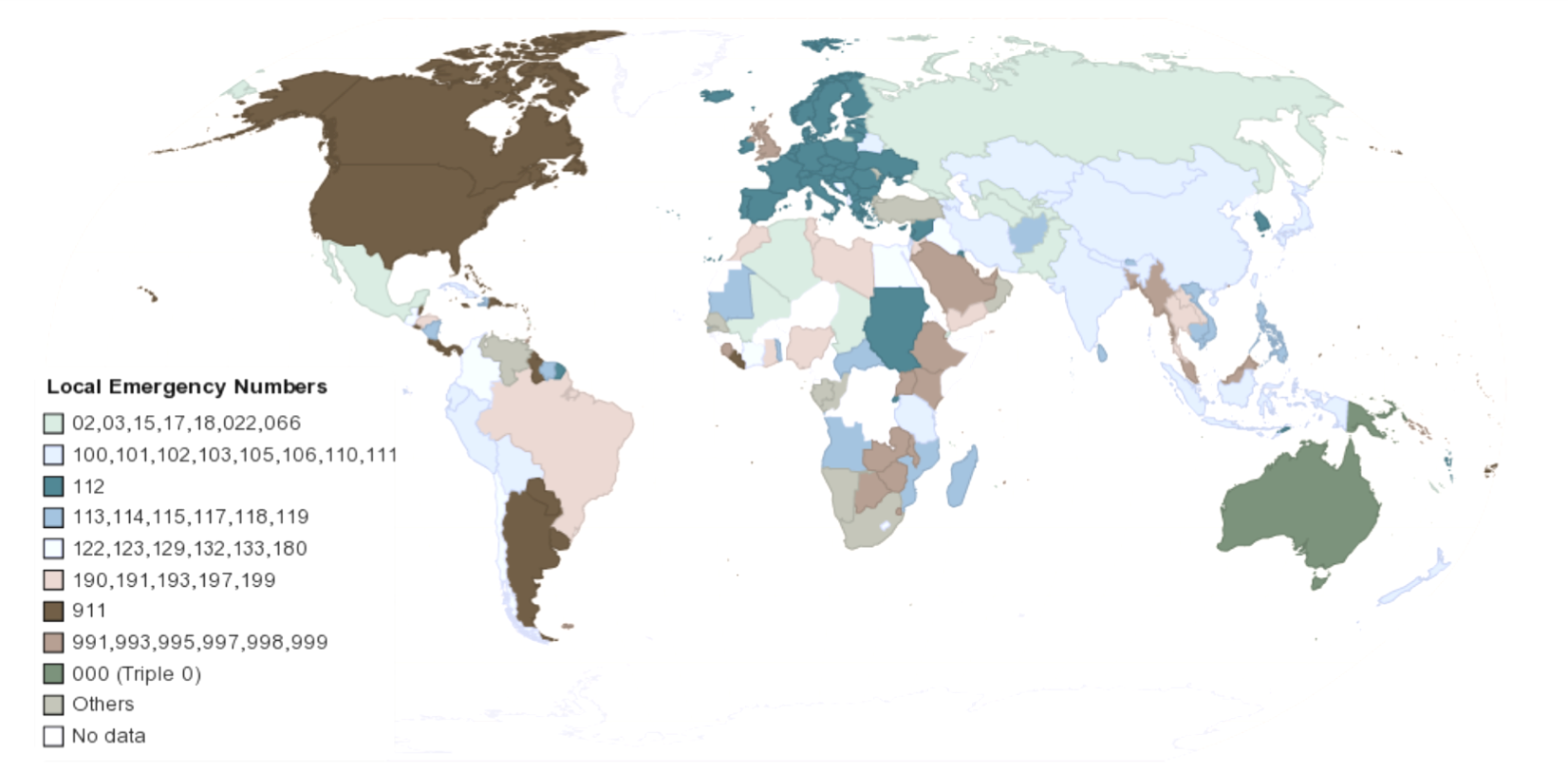

2.Background Research

How many kinds of emergency dispatchers in the worldwide?

(https://en.wikipedia.org/wiki/List_of_emergency_telephone_numbers)

There are different dispatchers numbers in different countries, there is only one number in US but there are more than five numbers in asian part.



Screen Shot 2018-08-18 at 2.37.33 PM.png

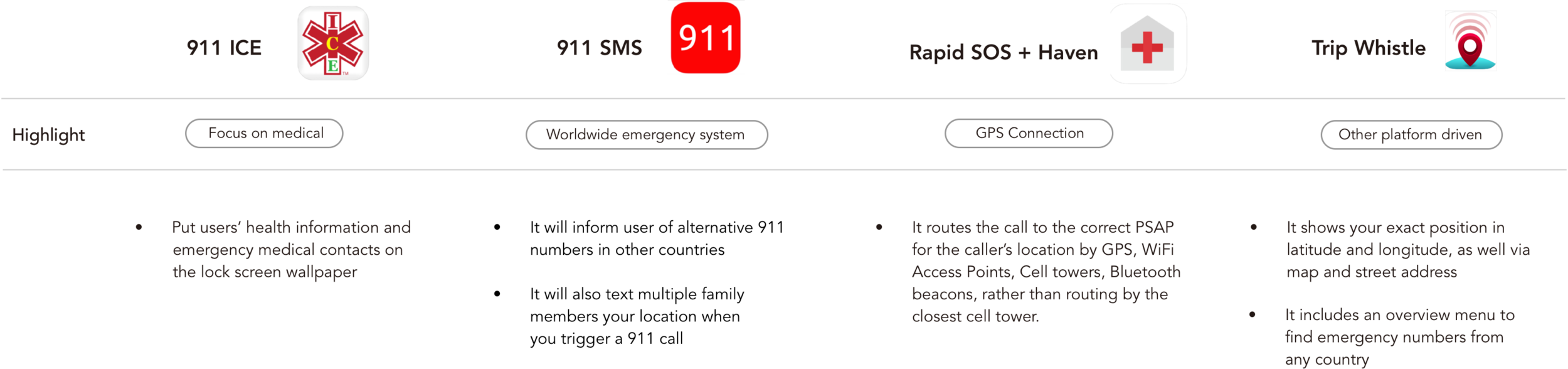

3.Competitive Analysis

What are the existed products & existed features?

I studied the existed emergency product: 911 ICE, 911 SMS, Rapid SOS and Trip Whistle. These products highlight in different area of user requirements. It is important to point out that people don’t really trust these products in the context of emergency.


Group 37.png



4.Interview

What are the pain points?

General

With the learning, I established personas to better capture the pain points. During the interview with several groups of people, I found that people feel disappointed in these area: LOCATION, LANGUAGE, CELL SERVICE, and it is easy to lose connection when people travel back.

Specific

People don’t realize what they are talking about in the emergency, panic make them irrational.

For some medical context, people have the limitation to speak due to either the physical or mental feeling.





5.Understanding Existing Experience

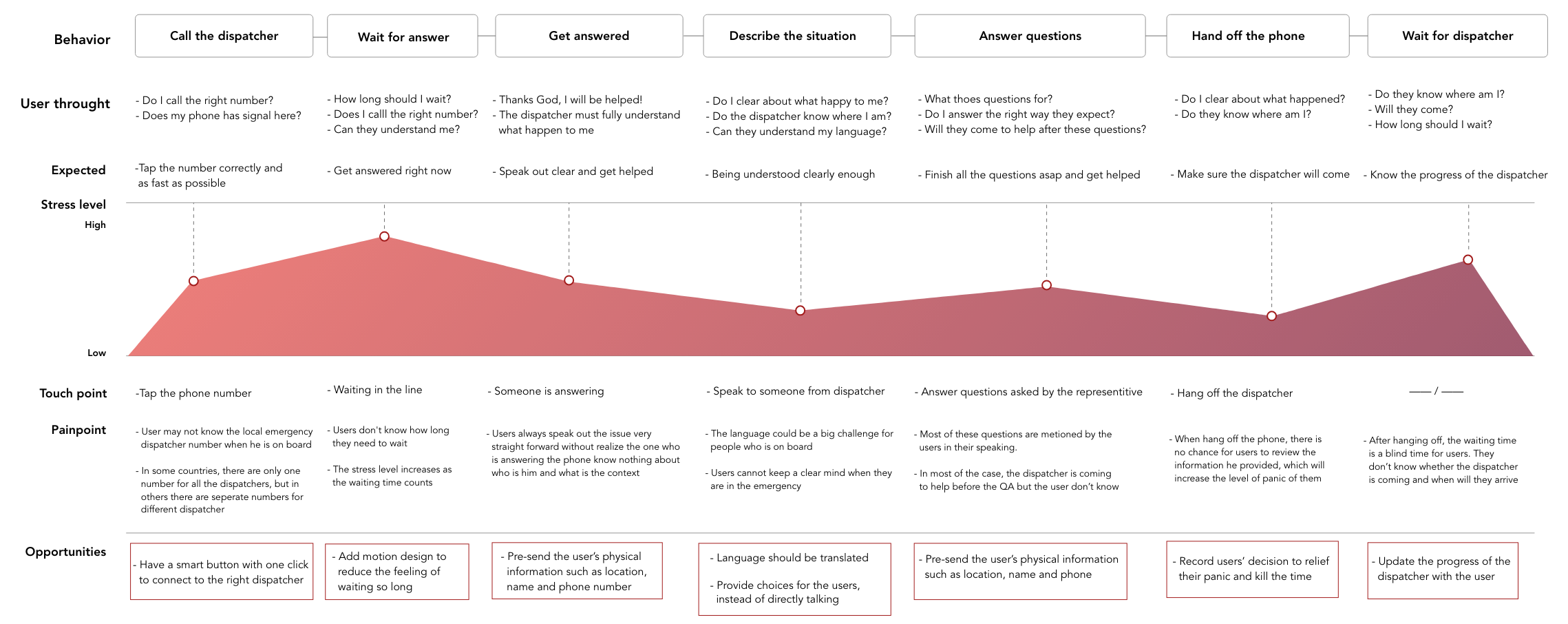

911 experience diagramming_Where is the opportunity?

Screen Shot 2018-09-08 at 1.56.57 PM.png

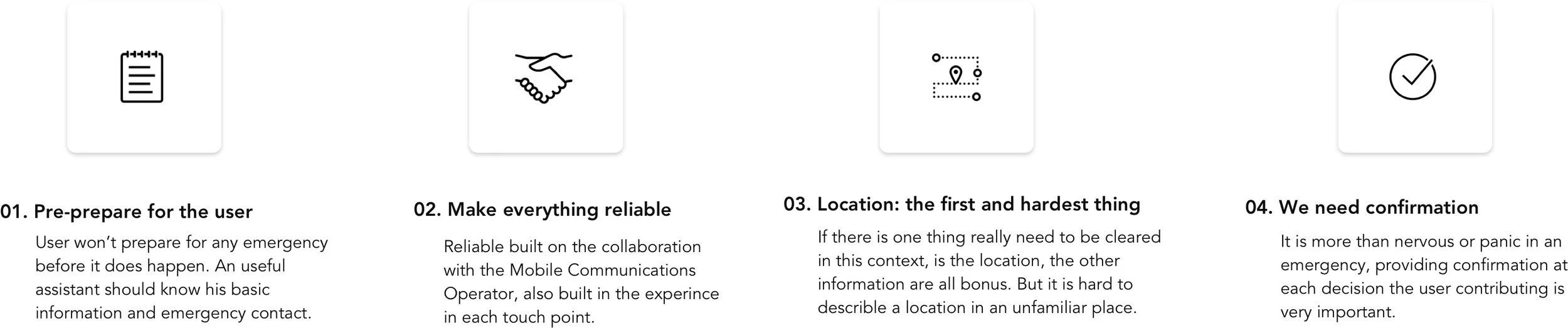

6.Opportunity Area

Group 38.jpg


02. design Concept





1.Reframe Design Problem



There are existed product that can help when you are in the emergency or you are out of the country. Following by the initial problem, the simple solution could be a integrated product with the functions of both emergency-required and abroad-required. However, it is most important to think how might I make this product both useful and reliable?




2.Brainstorm+Synthesis


Screen Shot 2018-10-21 at 2.55.32 PM.png



3. Features Module

I landed with eight features module based on the synthesis and brainstorming. They will be embedded into the journey in different touch point.

Screen Shot 2018-10-08 at 7.48.31 PM.png

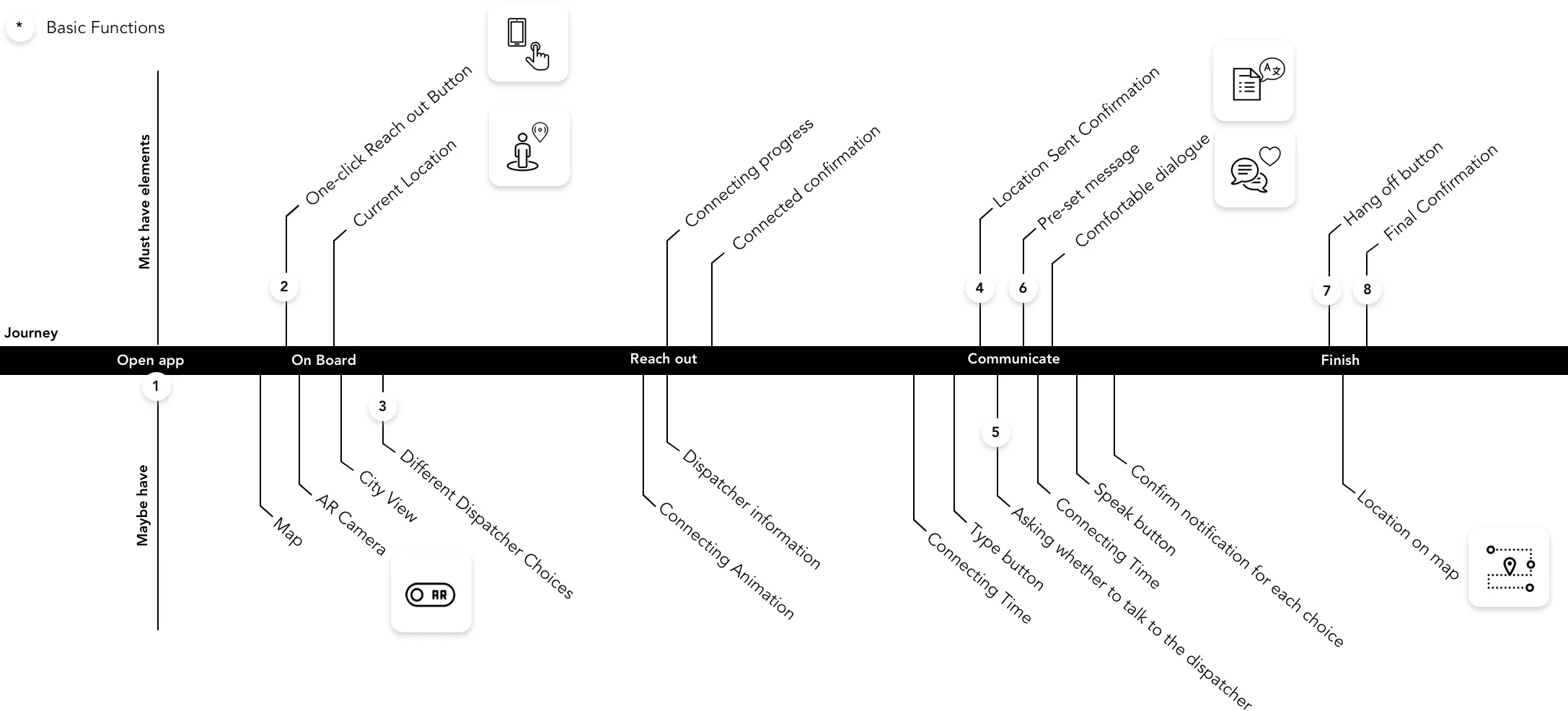

4.Function Exploration


Group 39.jpg



5.Low-fidelity Prototypes

Following the function exploration, I made five low-fidelity prototypes to test the basic functions. I try to figure out the most reasonable user flow and functions with the goal of taking as least as possible steps to achieve the goal.


Screen Shot 2018-10-08 at 5.09.42 PM.png



THE RESULT

Group 40.jpg




6.Mid-fidelity and A&B test

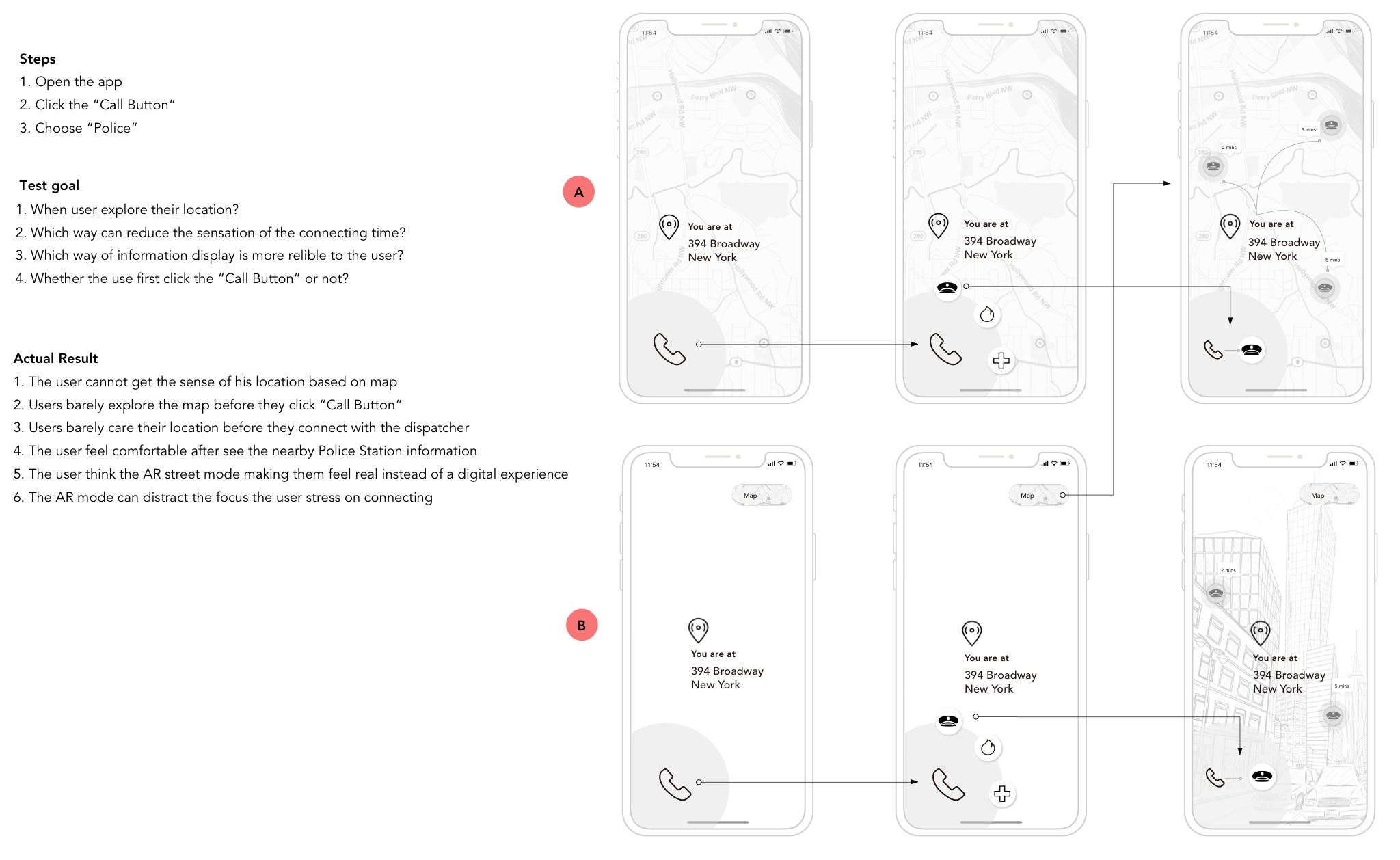

TEST CASE NO.1

Map, or Not, or AR Camera?

Screen Shot 2018-10-09 at 9.38.18 PM.png


THE RESULT

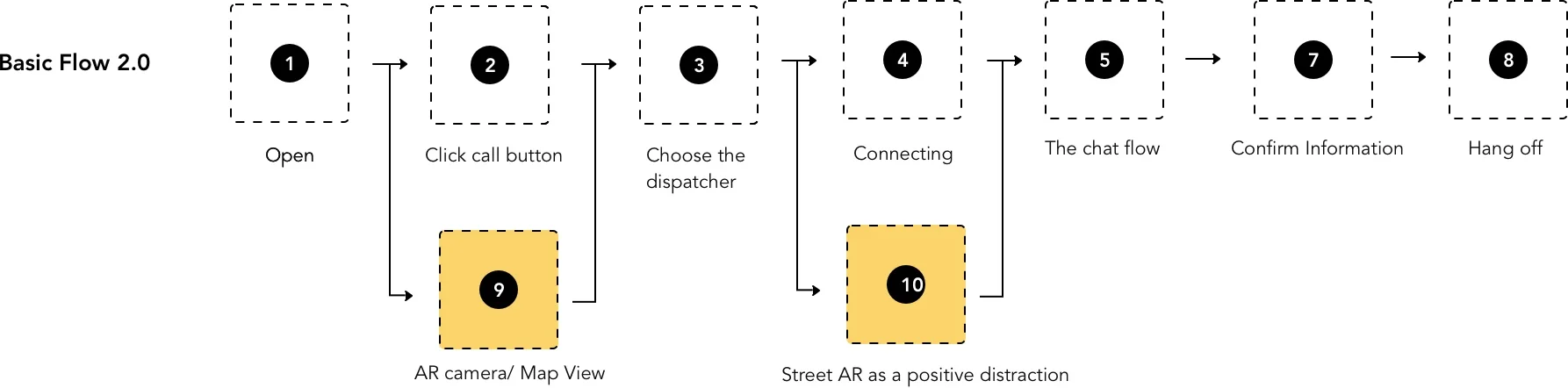

Group 41.jpg




TEST CASE NO.2

Chat Mode or Call Mode?

The flow A is created on the perspective of a smart chatbot, it reacts in the first person perspective that let user confirm and choose. The flow B is created in a traditional phone call flow, it is a third person perspective chat but more close to the real phone call.


Group 12.jpg


THE RESULT

Screen Shot 2018-10-12 at 3.03.00 PM.png


03. Design Development

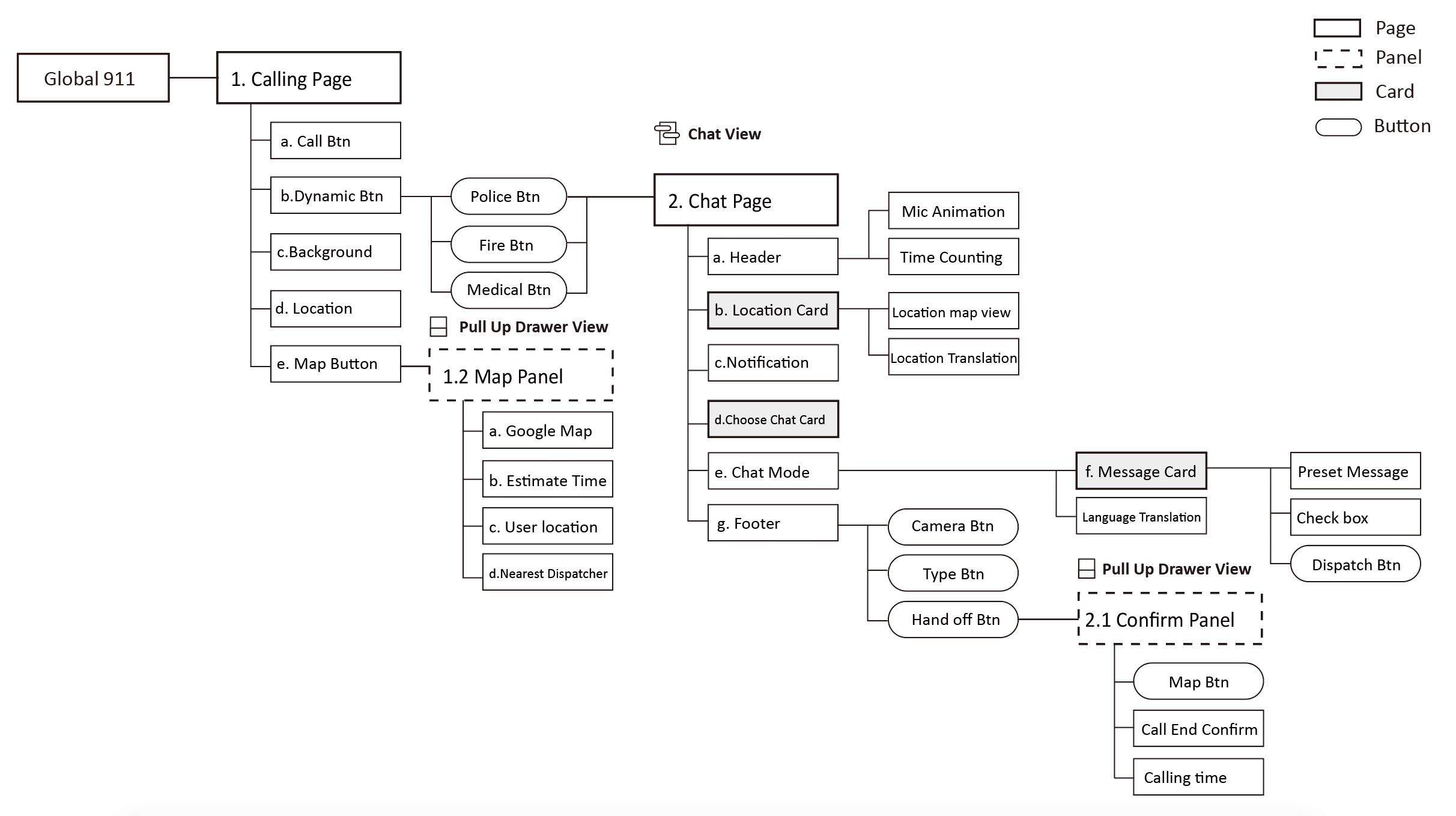

1.Information Architecture (Version 1.0)

Screen Shot 2017-09-17 at 3.27.50 PM.png



2.Wireframe

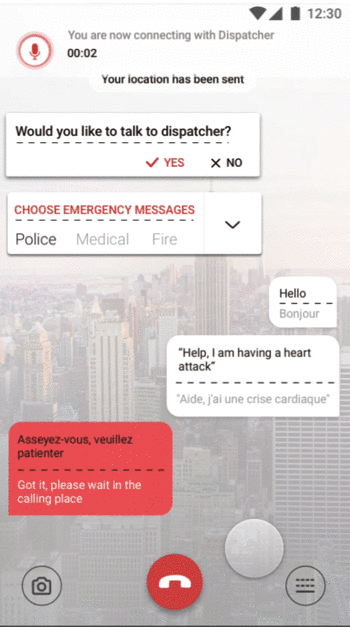

3.High-Fidelity(By Framer)

https://framer.cloud/ErQKR


Choose a dispatcher and reach out

Choose a dispatcher and reach out


Chat with the dispatcher

Chat with the dispatcher


Finish and wait for dealing with

Finish and wait for dealing with

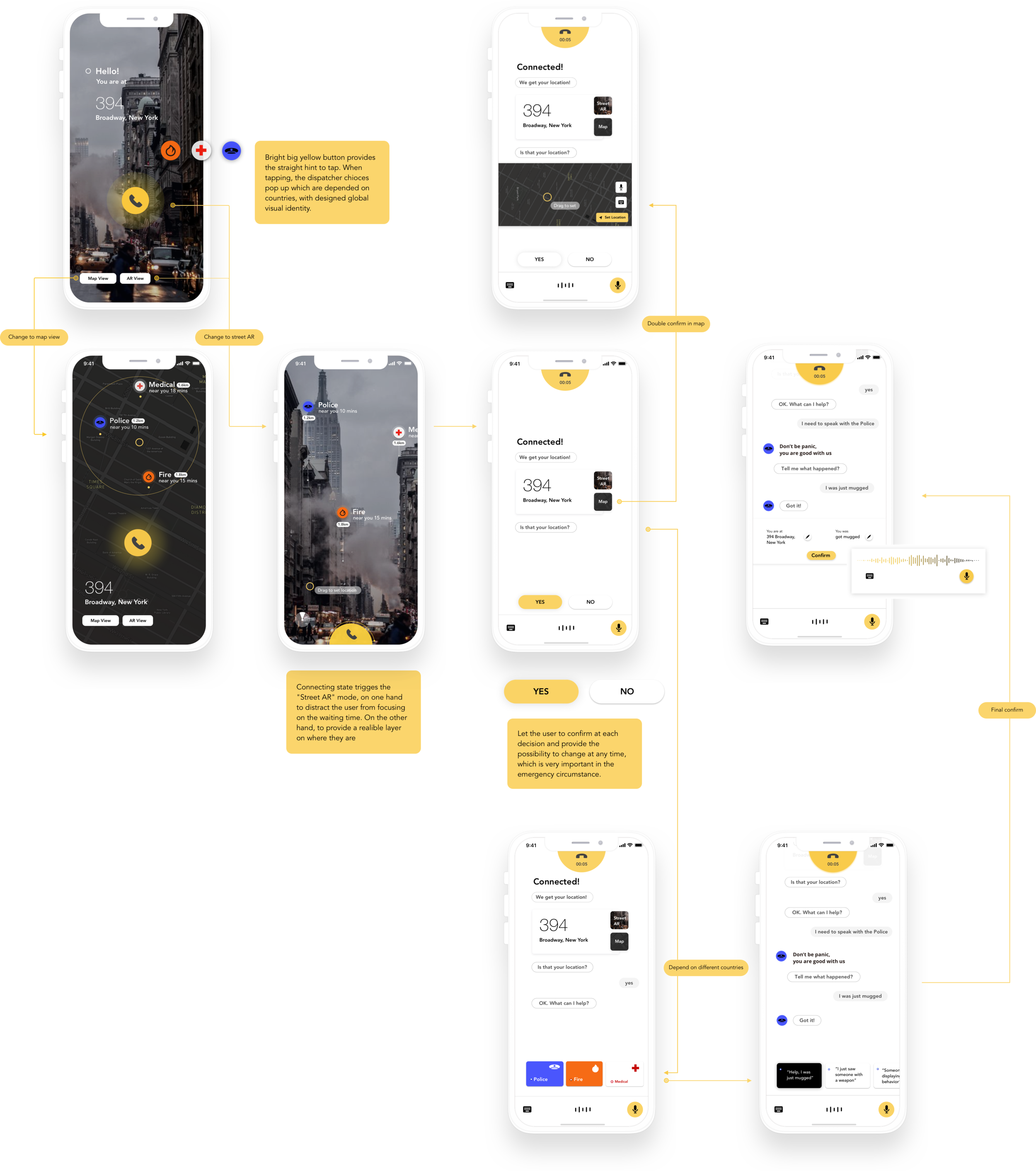

4.User Flow

Group 35.png



WHAT I LEARNED

  1. Provide the least steps solution to reach the goal, and also provide the choice to get the full service

  2. Provide confirmation on each step the user made

  3. Use more UI than text

  4. Keep the background and chat clean





5.Final Delivery
